ELECTRICAL INSULATION PUTTY

ELECTRICAL INSULATION PUTTY
ELECTRICAL INSULATION PUTTY
Product Code : IX310100470
Brand Name : 3M
  • Minimum Order Quantity
Trade Information
  • Packaging Details
  • UL
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • North India
  • Certifications
  • UL
Product Description

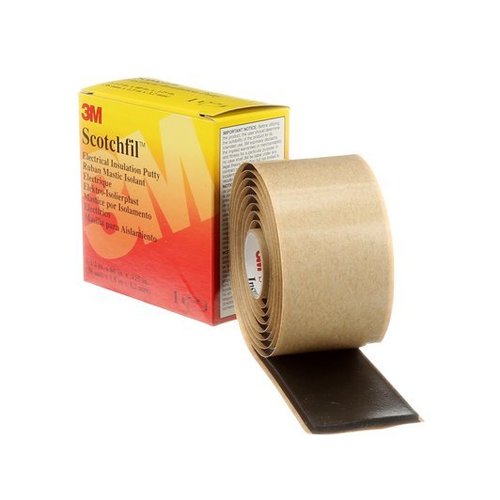

3Mâ„¢ Scotchfilâ„¢ Electrical Insulation Putty comes in a tape form that is used to insulate irregular surfaces like fittings and valves. This self-fusing, electrical-grade tape can be stretched or wrapped and helps to insulate connections up to 600V. It withstands a wide temperature range of 32 to 176 degrees F (0 to 80 degrees C).
3Mâ„¢ Scotchfilâ„¢ Electrical Insulation Putty is a 125-mil thick, non-corrosive, mastic adhesive that offers optimized adherence. This tape-shaped putty has outstanding aging properties and is ideal for creating a resin dam at resin pressure joints. It helps to seal multi-conductor cable connections, as well as wire exits at high-voltage joints. RoHS 2011/65/EU Compliant.
  • Highly conformable with non-corrosive mastic adhesive
  • Has a good aging property
  • Suitable for insulating irregular surfaces like fittings and valves
  • Tape measures 1-1/2 in x 60 in x 125 mil
  • Made of black tacky mastic
  • Withstands a wide temperature range of 32 to 176 degrees F (0 to 80 degrees C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • 12 rolls/case



Specifications

 Adhesive Material‎‎ Mastic
 Agency Approvals‎‎ UL Recognized
 Applications‎‎ Sealing
 Backing Material‎‎ Electrical Insulation Putty
 Backing Thickness (metric)‎‎ 3.175 mm
 Brand‎‎ 3M
 Color‎‎ Black
 Dielectric Strength (V/mil)‎‎ 22000
 Elongation‎‎ 1000 %
 Elongation at Break‎‎ 1000%
 Family‎‎ 3Mâ„¢ Scotchfilâ„¢ Black, Electrical Insulation Putty
 Length‎‎ 60 Inch
 Length (Metric)‎‎ 1.5 m
 Material‎‎ Electrical Grade Putty
 Operating Temperature (Celsius)‎‎ 0 to 80 Degree Celsius
 Operating Temperature (Fahrenheit)‎‎ 32 to 176 Degree Fahrenheit
 Product Family‎‎ 3Mâ„¢ Scotchfilâ„¢ Black, Electrical Insulation Putty
 Product Type‎‎ Mastic tape
 RoHS 2011/65/EU Compliant‎‎ Yes
 RoHS EU Comments‎‎ RoHS 2011/65/EU compliant without exemption
*Important RoHS information
 Self-Extinguishing‎‎ No
 Self Sticking/Amalgamating‎‎ Yes
 Shelf Life‎‎ 5 Year
 Suitable for High Voltage‎‎ No
 Tape Grade‎‎ Premium
 Tape Type‎‎ Sealing and Insulating Mastic
 Tape Width (metric)‎‎ 38 mm
 Thickness‎‎ 125 mil
 Thickness (Metric)‎‎ 3.175 mm
 Total Thickness‎‎ 3.175 mm
 Trademark‎‎ Scotchfil
 UV Resistant‎‎ Yes
 Voltage Application‎‎ Low Voltage
 Vulcanizing‎‎ No
 Width‎‎ 1.5 Inch
 Width (Metric)‎‎ 38 mm
