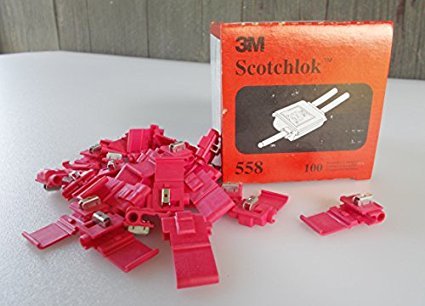

Scotchlok Electrical Tap Wire Connector

Scotchlok Electrical Tap Wire Connector
Scotchlok Electrical Tap Wire Connector
Product Code : 80004000487
Brand Name : 3M
Trade Information
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • North India
Product Description

Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Flame retardant. Maximum insulation O.D.diameter of 0.120 inches (3,05 mm) and a operating temperature of 221(deg)F (105(deg)C). The suggested application tool for this connector is the E-9BM Crimping Tool.

Agency Approvals‎‎ UL and CSA
 Brand‎‎ Scotchlokâ„¢
 Color‎‎ Red
 Conductor Sizes‎‎ 22 - 16 AWG (Tap)
 Connection Type‎‎ Double Run or Tap
 Connector Style‎‎ Insulation Displacement
 CSA File Number‎‎ LR15503
 Family‎‎ IDC for Electrical Applications
 Flame Retardant‎‎ Yes
 Insulation Material‎‎ Polypropylene
 Material‎‎ Insulator: FR Polypropylene, U-Contact: Tin-plated brass
 Maximum Operating Temperature (Celsius)‎‎ 105 Degree Celsius
 Maximum Operating Temperature (Fahrenheit)‎‎ 221 Degree Fahrenheit
 Maximum Recommended Voltage Rating‎‎ 600 V
 Maximum Wire Gauge‎‎ 16 AWG
 Minimum Wire Gauge‎‎ 22 AWG
 Packaging‎‎ Bulk
 Product Family‎‎ IDC for Electrical Applications
 Product Type‎‎ Connector
 RoHS 2011/65/EU Compliant‎‎ Yes
 RoHS EU Comments‎‎ RoHS 2011/65/EU compliant without exemption
*Important RoHS information
 Trademark‎‎ Scotchlok
 UL File Number‎‎ E23438
